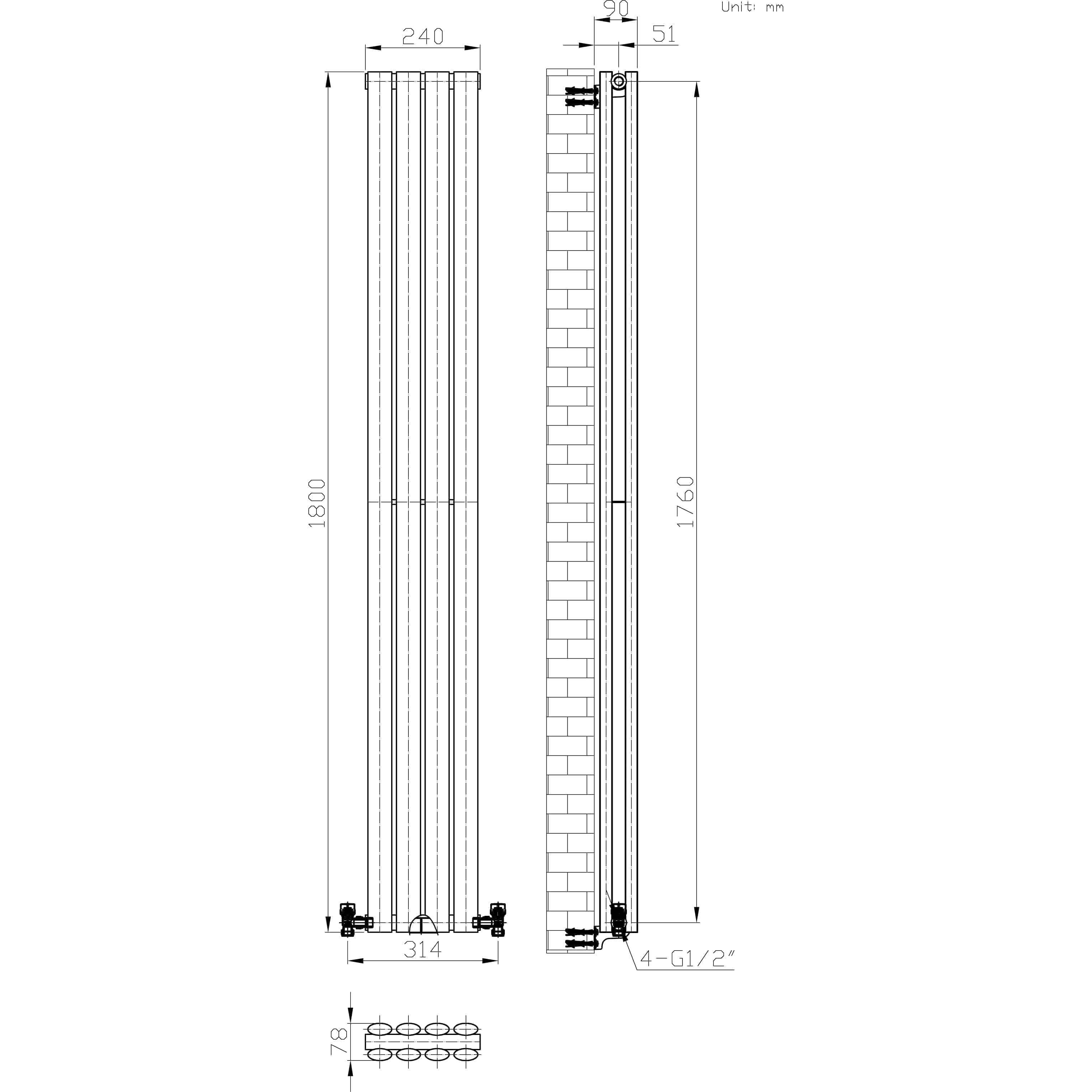

Dimensions
- Height
- 180
- Width
- 24
- Depth
- 7.9
- Projection
- 9
- Weight
- 16.13
- Gross Weight
- 18.07
- Package Height
- 183
- Package Width
- 10
- Package Length
- 27
- Size
- 1800x240mm
Features
- Brand
- iBathUK
- Range Name
- Strata
- Type
- Designer Radiator
- Material
- Steel
- Style
- Contemporary
- Colour
- Grey
- Finish
- Matt Anthracite
- Panel Type
- Double
- Orientation
- Vertical

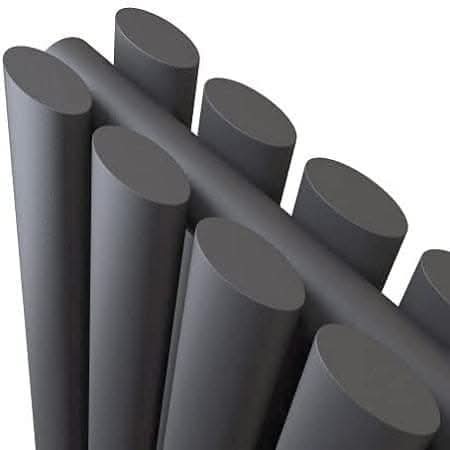

- Tube Shape
- Oval Panel
- Tube Size
- 50x25mm
- Pipe Centres
- 31.4
- Wall to Pipe Centres
- 5.1
- BTU Rating
- 3132
- Wattage
- 919
- Operating Pressure
- 6 Bars Max
- Type of Heat
- Water-based
- Mounting Type
- Wall-Mounted
- Inlet/Outlet Size
- 1/2"
- Valve Compatibility
- Angled / Straight
- Pipe Locations
- Radiator Base
- Guarantee
- 10 Years
- Manufacture Region
- China
- Number of Panels
- 8
- RAL Number
- 0
Components

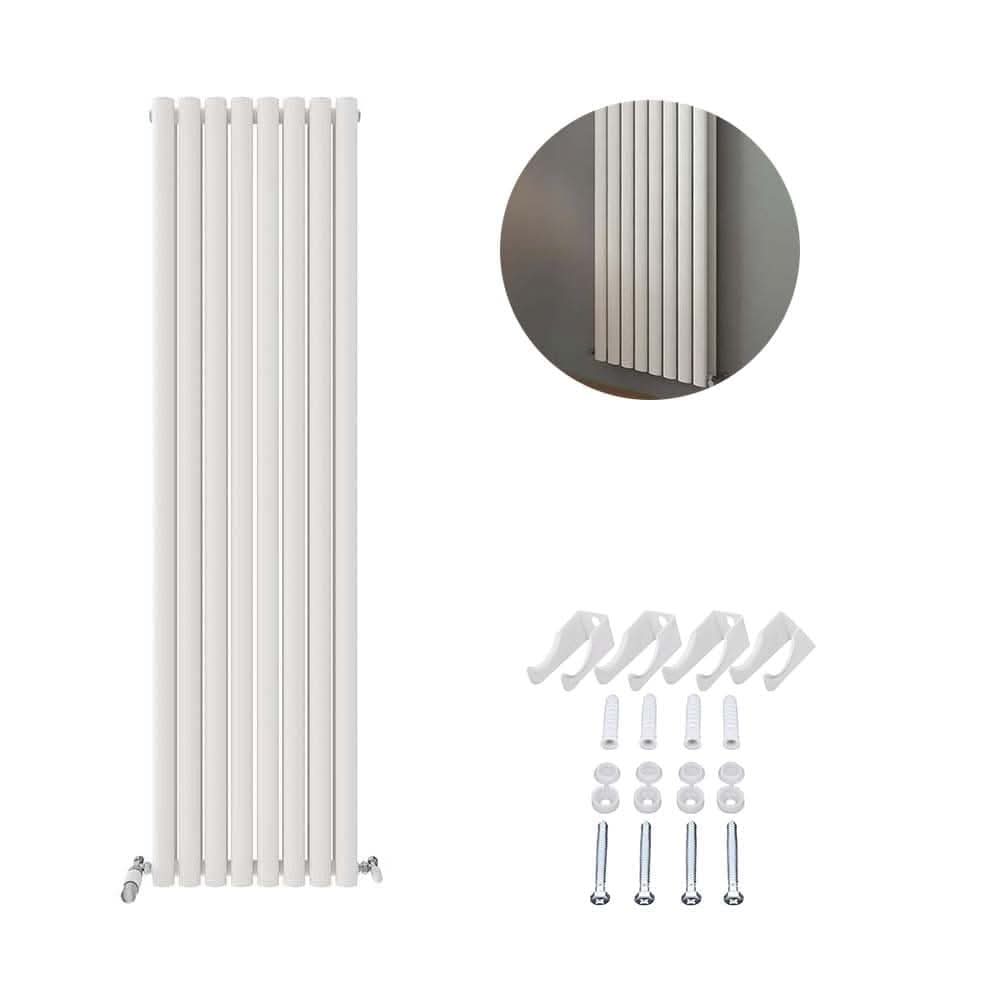

- Items Included

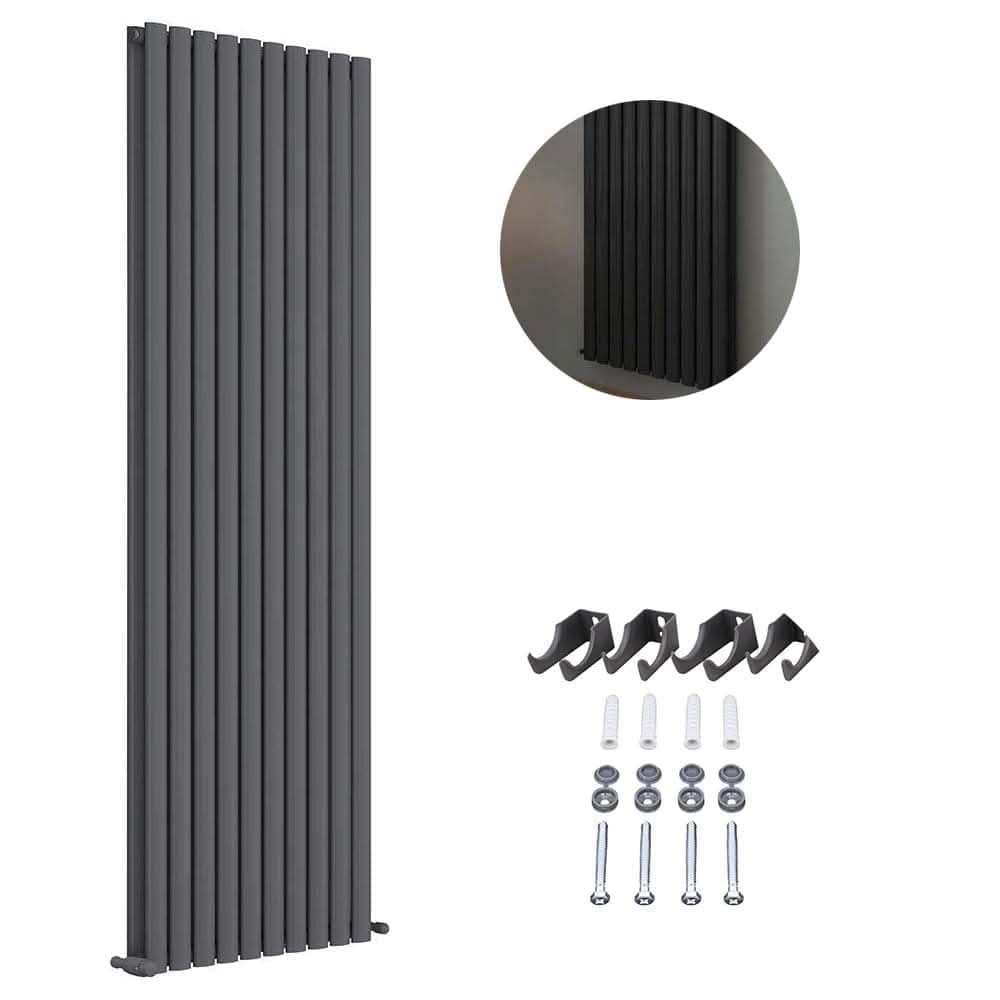

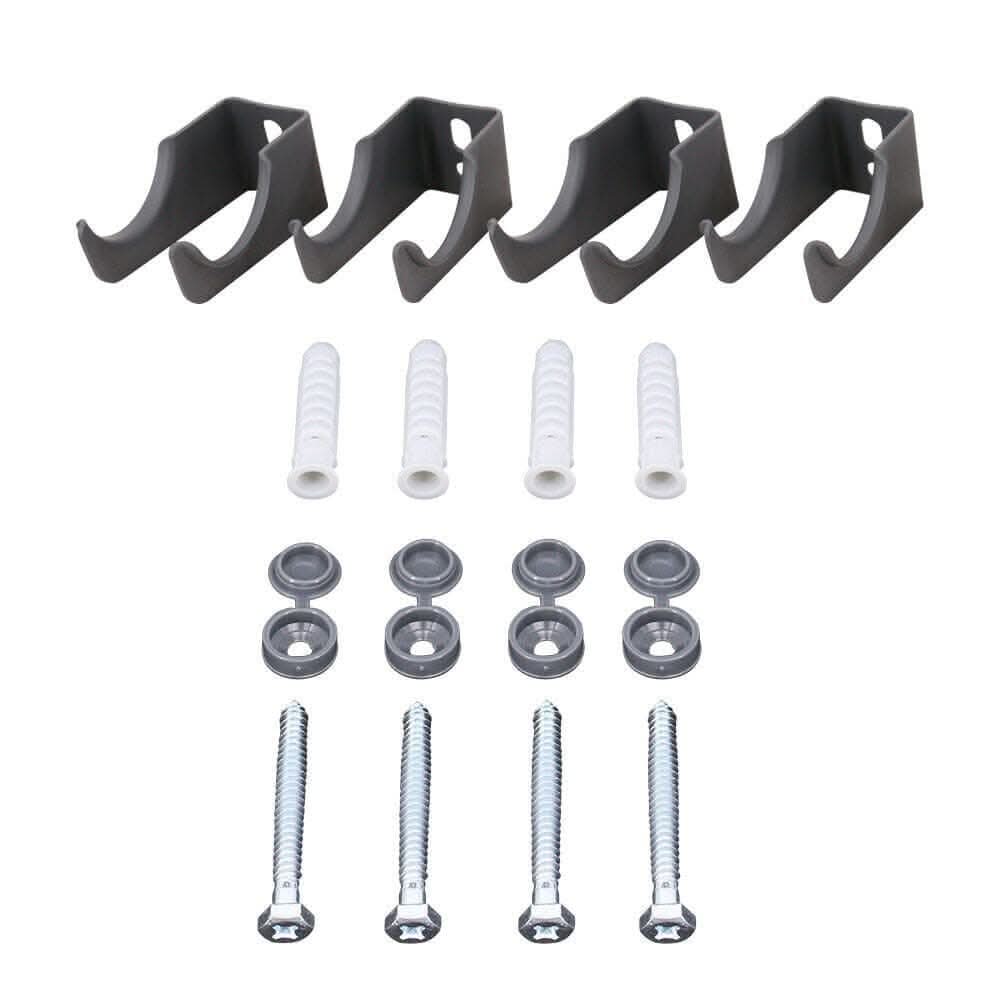

- Radiator, brackets, screws, plugs, air vents, wall fixings
- Items Not Included
- Radiator Valves

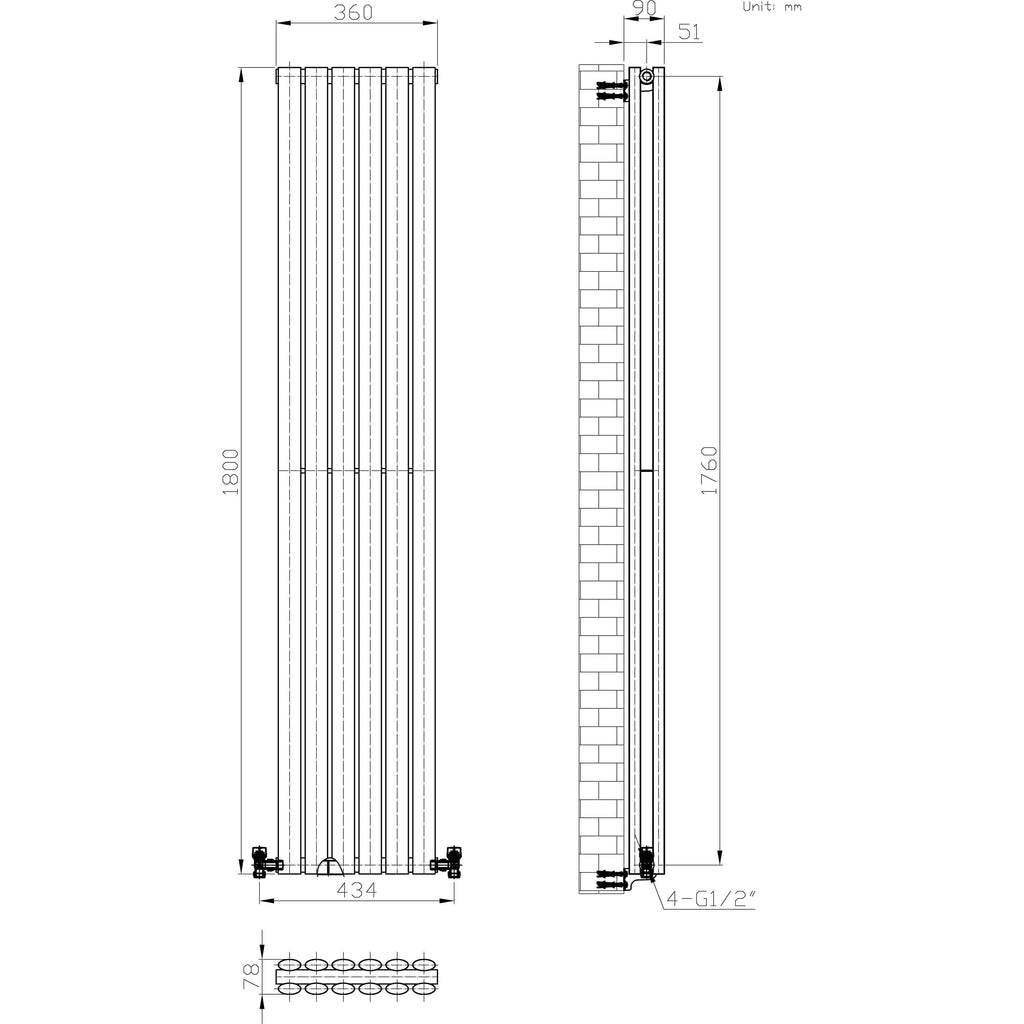

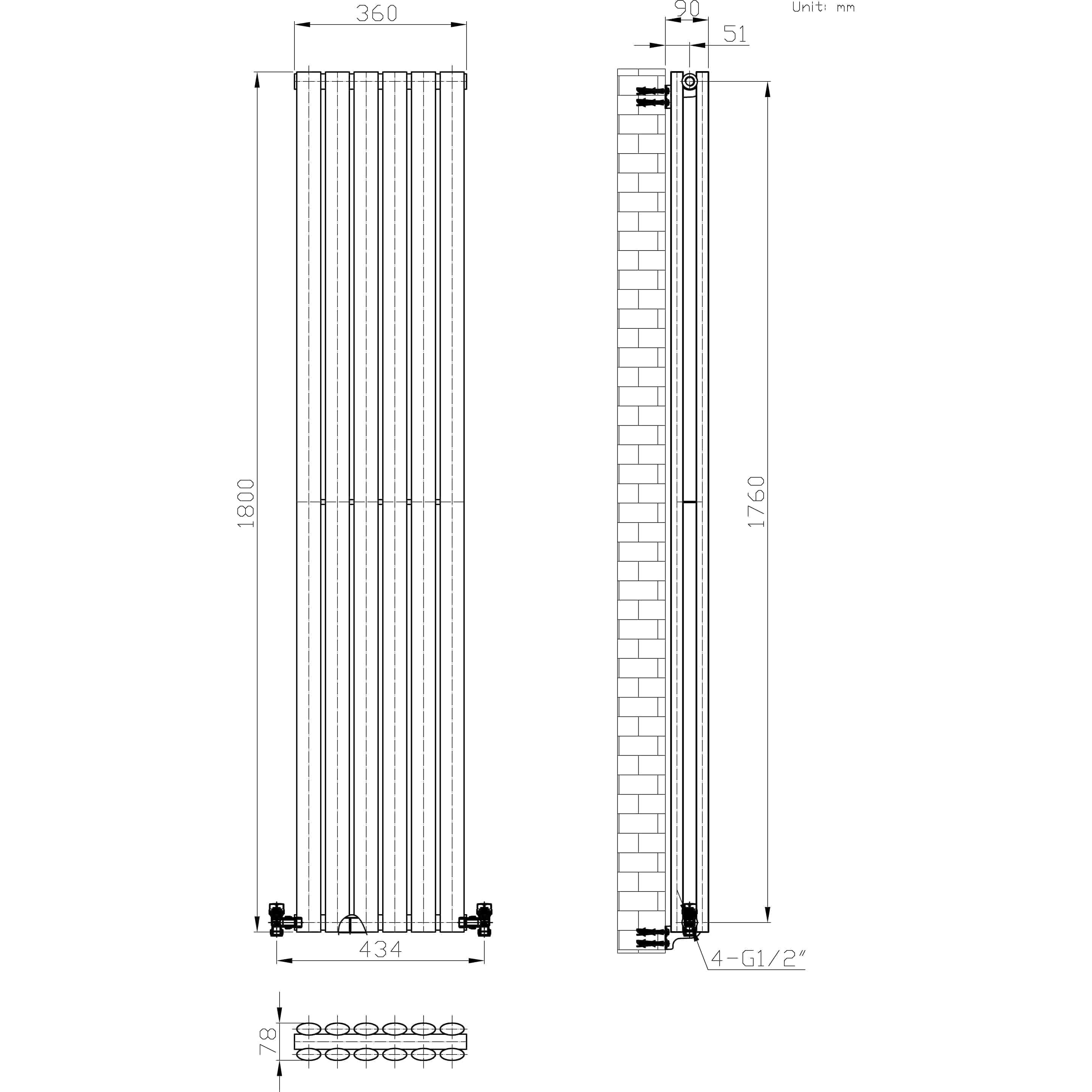

Dimensions
- Height
- 180
- Width
- 36
- Depth
- 7.9
- Projection
- 9
- Weight
- 24.9
- Gross Weight
- 27.22
- Package Height
- 183
- Package Width
- 10
- Package Length
- 39
- Size
- 1800x360mm
Features
- Brand
- iBathUK
- Range Name
- Strata
- Type
- Designer Radiator
- Material
- Steel
- Style
- Contemporary
- Colour
- Grey
- Finish
- Matt Anthracite
- Panel Type
- Double
- Orientation
- Vertical

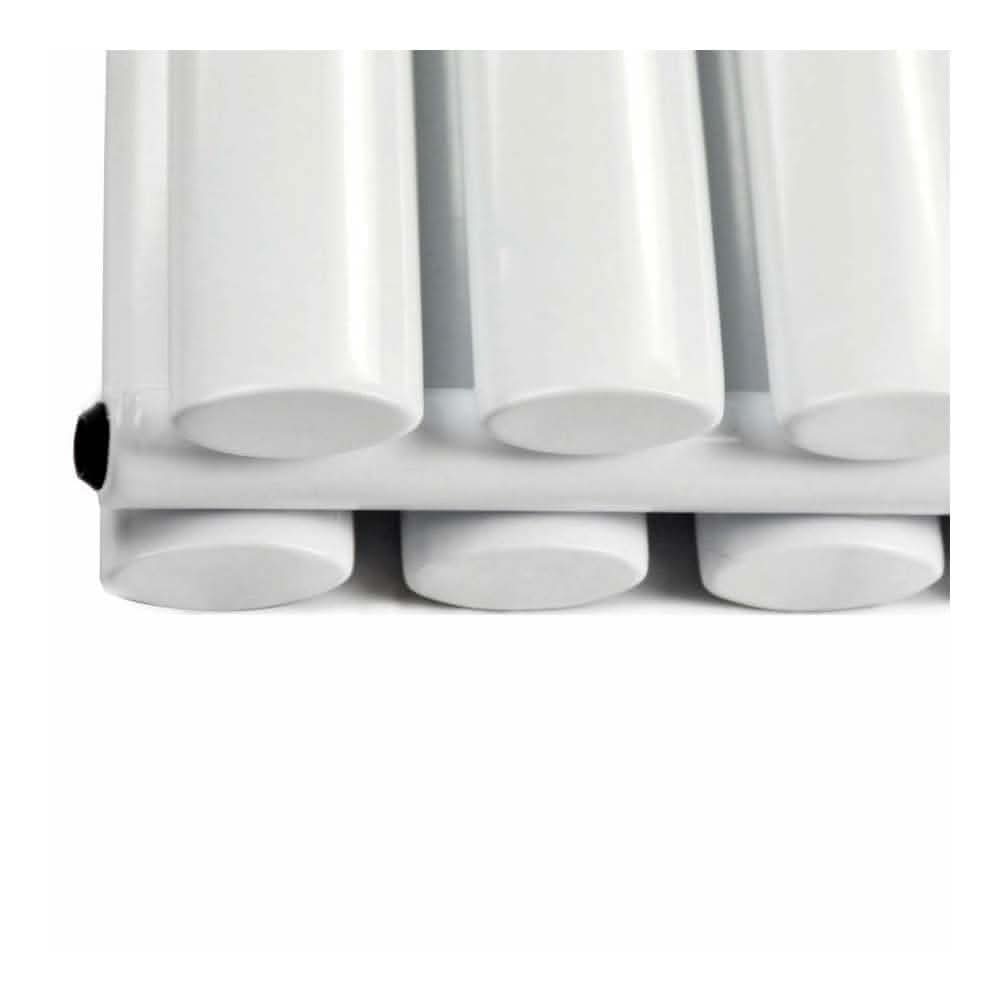

- Tube Shape
- Oval Panel
- Tube Size
- 50x25mm
- Pipe Centres
- 43.4
- Wall to Pipe Centres
- 5.1
- BTU Rating
- 4809
- Wattage
- 1411
- Operating Pressure
- 6 Bars Max
- Type of Heat
- Water-based
- Mounting Type
- Wall-Mounted
- Inlet/Outlet Size
- 1/2"
- Valve Compatibility
- Angled / Straight
- Pipe Locations
- Radiator Base
- Guarantee
- 10 Years
- Manufacture Region
- China
- Number of Panels
- 12
- RAL Number
- 0
Components
- Items Included
- Radiator, brackets, screws, plugs, air vents, wall fixings
- Items Not Included
- Radiator Valves

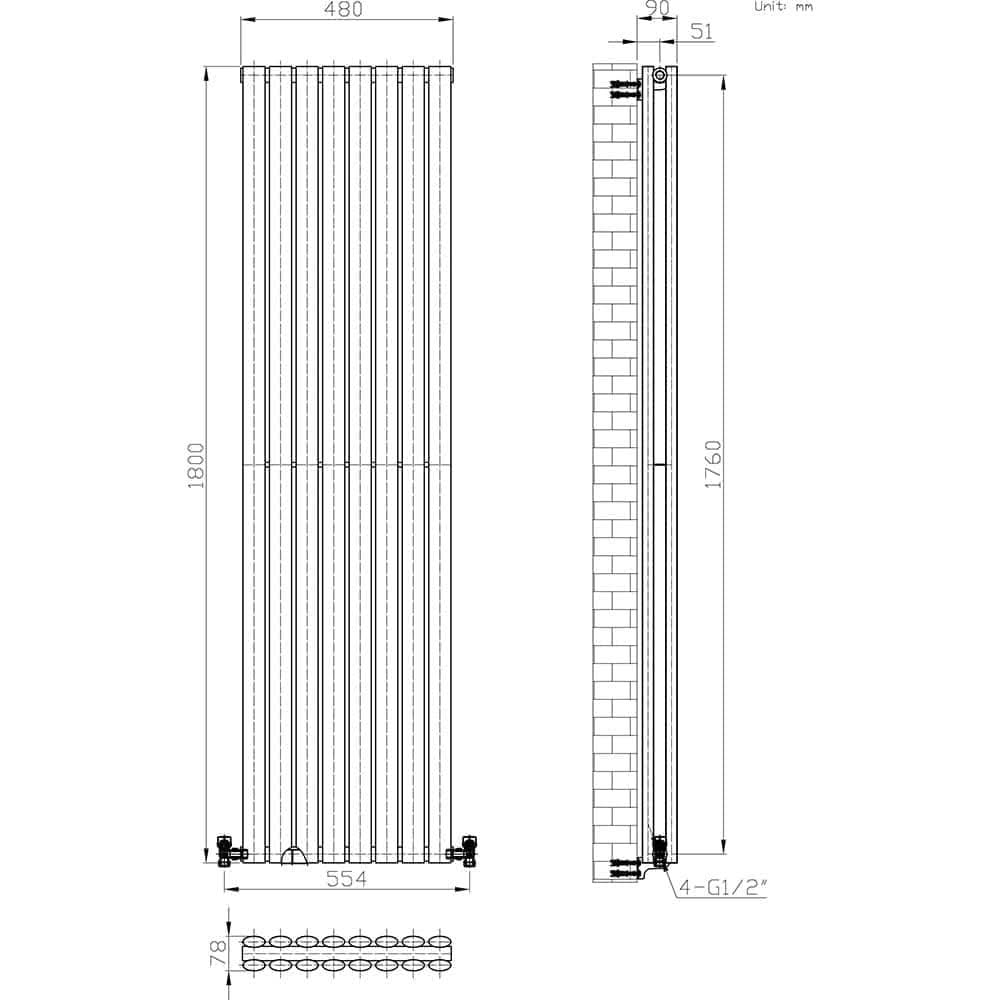

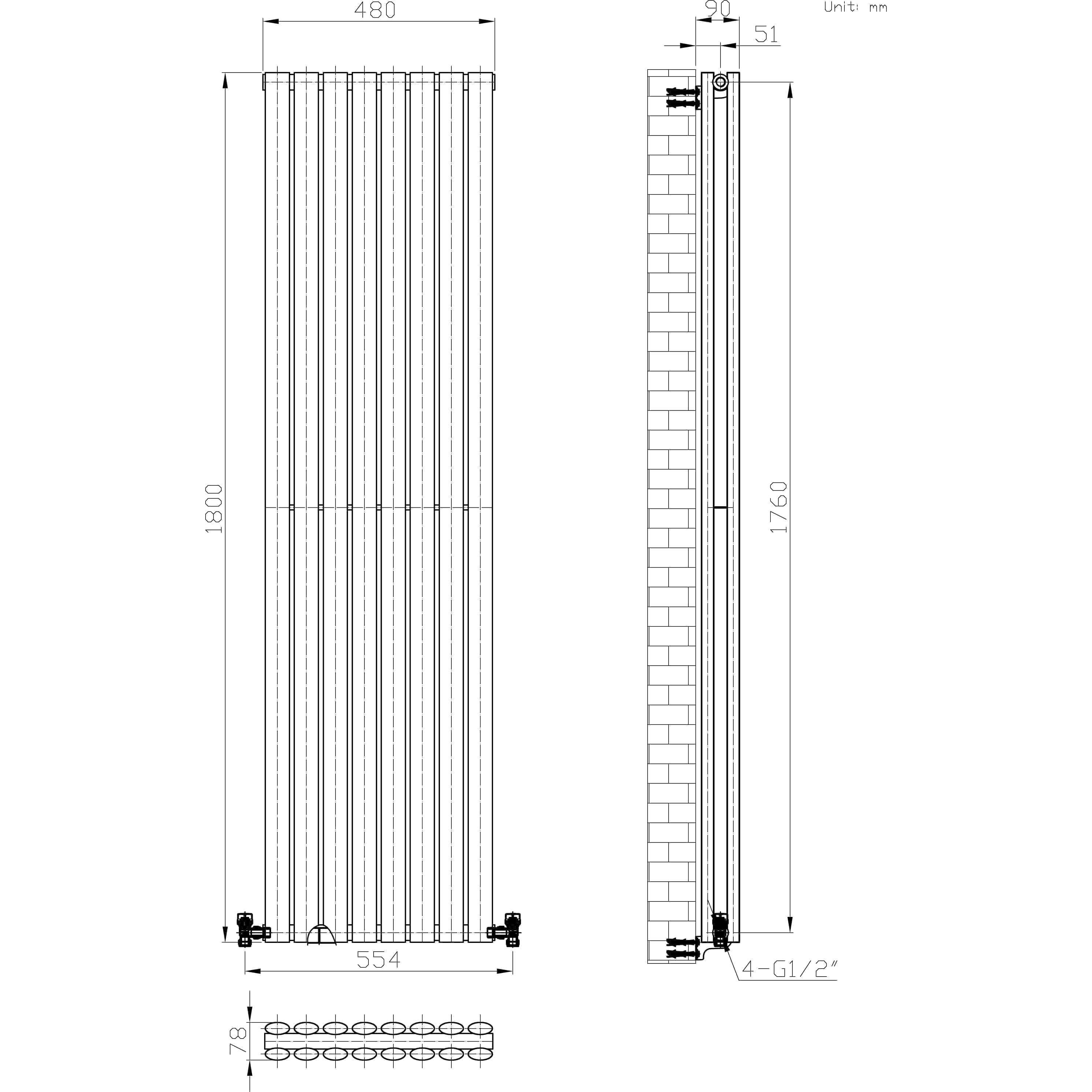

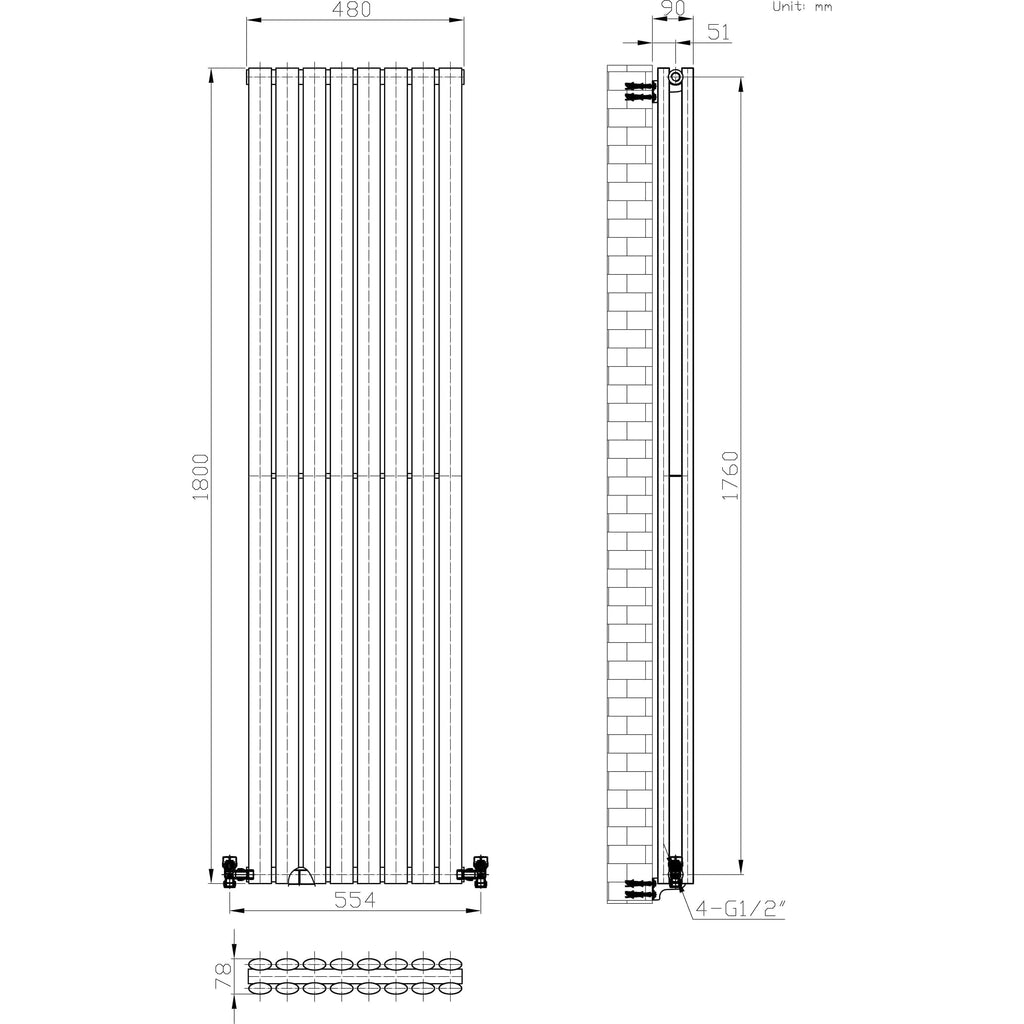

Dimensions
- Height
- 180
- Width
- 48
- Depth
- 7.9
- Projection
- 9
- Weight
- 33.1
- Gross Weight
- 35.81
- Package Height
- 183
- Package Width
- 10
- Package Length
- 51
- Size
- 1800x480mm
Features
- Brand
- iBathUK
- Range Name
- Strata
- Type
- Designer Radiator
- Material
- Steel
- Style
- Contemporary
- Colour
- Grey
- Finish
- Matt Anthracite
- Panel Type
- Double
- Orientation
- Vertical
- Tube Shape
- Oval Panel
- Tube Size
- 50x25mm
- Pipe Centres
- 55.4
- Wall to Pipe Centres
- 5.1
- BTU Rating
- 6405
- Wattage
- 1879
- Operating Pressure
- 6 Bars Max
- Type of Heat
- Water-based
- Mounting Type
- Wall-Mounted
- Inlet/Outlet Size
- 1/2"
- Valve Compatibility
- Angled / Straight
- Pipe Locations
- Radiator Base
- Guarantee
- 10 Years
- Manufacture Region
- China
- Number of Panels
- 16
- RAL Number
- 0
Components
- Items Included
- Radiator, brackets, screws, plugs, air vents, wall fixings
- Items Not Included
- Radiator Valves

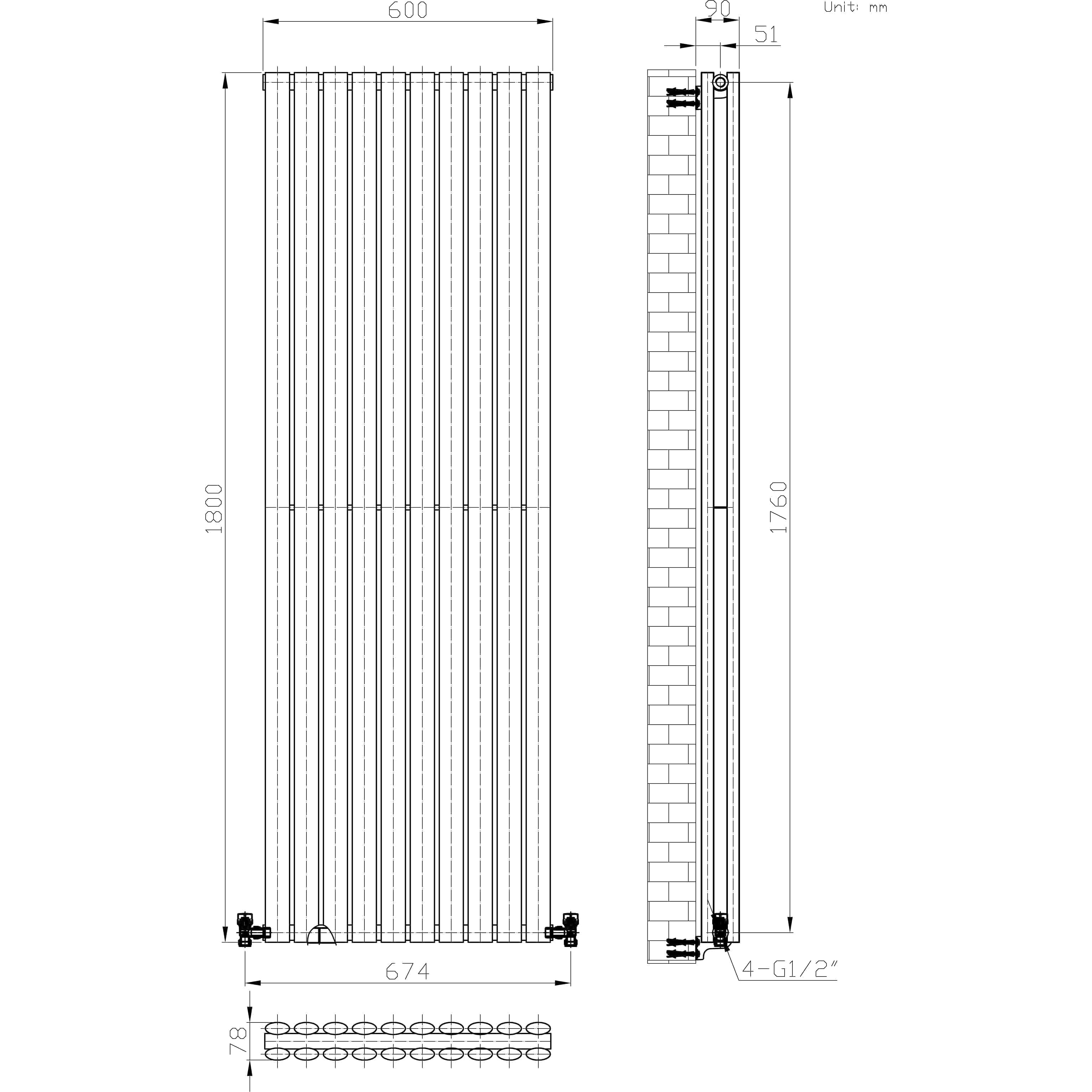

Dimensions
- Height
- 180
- Width
- 60
- Depth
- 7.9
- Projection
- 9
- Weight
- 41.3
- Gross Weight
- 44.4
- Package Height
- 183
- Package Width
- 10
- Package Length
- 63
- Size
- 1800x600mm
Features
- Brand
- iBathUK
- Range Name
- Strata
- Type
- Designer Radiator
- Material
- Steel
- Style
- Contemporary
- Colour
- Grey
- Finish
- Matt Anthracite
- Panel Type
- Double
- Orientation
- Vertical
- Tube Shape
- Oval Panel
- Tube Size
- 50x25mm
- Pipe Centres
- 67.4
- Wall to Pipe Centres
- 5.1
- BTU Rating
- 7830
- Wattage
- 2297
- Operating Pressure
- 6 Bars Max
- Type of Heat
- Water-based
- Mounting Type
- Wall-Mounted
- Inlet/Outlet Size
- 1/2"
- Valve Compatibility
- Angled / Straight
- Pipe Locations
- Radiator Base
- Guarantee
- 10 Years
- Manufacture Region
- China
- Number of Panels
- 20
- RAL Number
- 0
Components
- Items Included
- Radiator, brackets, screws, plugs, air vents, wall fixings
- Items Not Included
- Radiator Valves
Dimensions
- Height
- 180
- Width
- 24
- Depth
- 7.9
- Projection
- 9
- Weight
- 16.13
- Gross Weight
- 18.07
- Package Height
- 183
- Package Width
- 10
- Package Length
- 27
- Size
- 1800x240mm
Features
- Brand
- iBathUK
- Range Name
- Strata
- Type
- Designer Radiator
- Material
- Steel
- Style
- Contemporary
- Colour
- White
- Finish
- Matt White
- Panel Type
- Double
- Orientation
- Vertical
- Tube Shape
- Oval Panel
- Tube Size
- 50x25mm
- Pipe Centres
- 31.4
- Wall to Pipe Centres
- 5.1
- BTU Rating
- 3132
- Wattage
- 919
- Operating Pressure
- 6 Bars Max
- Type of Heat
- Water-based
- Mounting Type
- Wall-Mounted
- Inlet/Outlet Size
- 1/2"
- Valve Compatibility
- Angled / Straight
- Pipe Locations
- Radiator Base
- Guarantee
- 10 Years
- Manufacture Region
- China
- Number of Panels
- 8
- RAL Number
- 0
Components
- Items Included
- Radiator, brackets, screws, plugs, air vents, wall fixings
- Items Not Included
- Radiator Valves
Dimensions
- Height
- 180
- Width
- 36
- Depth
- 7.9
- Projection
- 9
- Weight
- 24.9
- Gross Weight
- 27.22
- Package Height
- 183
- Package Width
- 10
- Package Length
- 39
- Size
- 1800x360mm
Features
- Brand
- iBathUK
- Range Name
- Strata
- Type
- Designer Radiator
- Material
- Steel
- Style
- Contemporary
- Colour
- White
- Finish
- Matt White
- Panel Type
- Double
- Orientation
- Vertical
- Tube Shape
- Oval Panel
- Tube Size
- 50x25mm
- Pipe Centres
- 43.4
- Wall to Pipe Centres
- 5.1
- BTU Rating
- 4809
- Wattage
- 1411
- Operating Pressure
- 6 Bars Max
- Type of Heat
- Water-based
- Mounting Type
- Wall-Mounted
- Inlet/Outlet Size
- 1/2"
- Valve Compatibility
- Angled / Straight
- Pipe Locations
- Radiator Base
- Guarantee
- 10 Years
- Manufacture Region
- China
- Number of Panels
- 12
- RAL Number
- 0
Components
- Items Included
- Radiator, brackets, screws, plugs, air vents, wall fixings
- Items Not Included
- Radiator Valves
Dimensions
- Height
- 180
- Width
- 48
- Depth
- 7.9
- Projection
- 9
- Weight
- 33.1
- Gross Weight
- 35.81
- Package Height
- 183
- Package Width
- 10
- Package Length
- 51
- Size
- 1800x480mm
Features
- Brand
- iBathUK
- Range Name
- Strata
- Type
- Designer Radiator
- Material
- Steel
- Style
- Contemporary
- Colour
- White
- Finish
- Matt White
- Panel Type
- Double
- Orientation
- Vertical
- Tube Shape
- Oval Panel
- Tube Size
- 50x25mm
- Pipe Centres
- 55.4
- Wall to Pipe Centres
- 5.1
- BTU Rating
- 6405
- Wattage
- 1879
- Operating Pressure
- 6 Bars Max
- Type of Heat
- Water-based
- Mounting Type
- Wall-Mounted
- Inlet/Outlet Size
- 1/2"
- Valve Compatibility
- Angled / Straight
- Pipe Locations
- Radiator Base
- Guarantee
- 10 Years
- Manufacture Region
- China
- Number of Panels
- 16
- RAL Number
- 0
Components
- Items Included
- Radiator, brackets, screws, plugs, air vents, wall fixings
- Items Not Included
- Radiator Valves
Dimensions
- Height
- 180
- Width
- 60
- Depth
- 7.9
- Projection
- 9
- Weight
- 41.3
- Gross Weight
- 44.4
- Package Height
- 183
- Package Width
- 10
- Package Length
- 63
- Size
- 1800x600mm
Features
- Brand
- iBathUK
- Range Name
- Strata
- Type
- Designer Radiator
- Material
- Steel
- Style
- Contemporary
- Colour
- White
- Finish
- Matt White
- Panel Type
- Double
- Orientation
- Vertical
- Tube Shape
- Oval Panel
- Tube Size
- 50x25mm
- Pipe Centres
- 67.4
- Wall to Pipe Centres
- 5.1
- BTU Rating
- 7830
- Wattage
- 2297
- Operating Pressure
- 6 Bars Max
- Type of Heat
- Water-based
- Mounting Type
- Wall-Mounted
- Inlet/Outlet Size
- 1/2"
- Valve Compatibility
- Angled / Straight
- Pipe Locations
- Radiator Base
- Guarantee
- 10 Years
- Manufacture Region
- China
- Number of Panels
- 20
- RAL Number
- 0
Components
- Items Included
- Radiator, brackets, screws, plugs, air vents, wall fixings
- Items Not Included
- Radiator Valves
